# ILP and Hilbert bases

First we will construct a new rational polytope:

> $p=new Polytope<Rational>; >$p->POINTS=<<".";
> 1 0 0 0
> 1 1 0 0
> 1 0 1 0
> 1 1 1 0
> 1 0 0 1
> 1 1 0 1
> 1 0 1 1
> 1 1 1 1
> .

Note that points in polymake are always given in homogenous coordinates. I.e., the point (a,b,c) in R3 is represented as 1 a b c in polymake.

Now we can examine some properties of $p. For instance we can determine the number of facets or whether $p is simple:

> print $p->N_FACETS; 6 > print$p->SIMPLE;
true

As you might already have noticed, our polytope is just a 3-dimensional cube. So there would have been an easier way to create it using the client cube:

> $c = cube(3,0); (You can check out the details of any function in the documentation.) And we can also verify that the two polytopes are actually equal: > print equal_polyhedra($p,$c); true Now let us proceed with a somewhat more interesting example: The convex hull of 20 randomly chosen points on the 2-dimensional sphere. >$rs = rand_sphere(3,20);

polymake can of course visualise this polytope:

> $rs->VISUAL; rs Transparency depthWrite Rotation x-axis y-axis z-axis Rotation speed Display Objects Camera SVG Download New tab  Now we will create yet another new polytope by scaling our random sphere by a factor lambda. (Otherwise there are rather few integral points contained in it.) To this end, we have to multiply every coordinate (except for the homogenising 1 in the beginning) of every vertex by lamda. Then we can create a new polytope by specifying its vertices. >$lambda=2;
> $s=new Matrix<Rational>([[1,0,0,0],[0,$lambda,0,0],[0,0,$lambda,0],[0,0,0,$lambda]]);
> print $s; 1 0 0 0 0 2 0 0 0 0 2 0 0 0 0 2 >$scaled_rs=new Polytope<Rational>(VERTICES=>($rs->VERTICES *$s), LINEALITY_SPACE=>[]);

polymake can visualise the polytope together with its lattice points:

> $scaled_rs->VISUAL->LATTICE_COLORED; scaled_rs Explode Automatic explosion Exploding speed Transparency depthWrite Rotation x-axis y-axis z-axis Rotation speed Display Objects Camera SVG Download New tab  Now will construct the integer hull of $scaled_rs and visualise it:

> $integer_hull=new Polytope<Rational>(POINTS=>$scaled_rs->LATTICE_POINTS);
> $integer_hull->VISUAL->LATTICE_COLORED; integer_hull Explode Automatic explosion Exploding speed Transparency depthWrite Rotation x-axis y-axis z-axis Rotation speed Display Objects Camera SVG Download New tab  In order to obtain the integer hull we simply define a new polytope $integer_hull as the convex hull of all LATTICE_POINTS contained in $scaled_rs. Note that if we give POINTS (in contrast to VERTICES) polymake constructs a polytope that is the convex hull of the given points regardless of whether they are vertices or not. I.e., redundacies are allowed here. If you specify VERTICES you have to make sure yourself that your points are actually vertices since polymake does not check this. You also need to specify the LINEALITY_SPACE, see Tutorial on polytopes. Now that we have constructed a nice integral polytope we want to apply some linear program to it. First we define a LinearProgram with our favourite LINEAR_OBJECTIVE. The linear objective is an given as a vector of length d+1, d being the dimension of the space. The vector [c0,c1, …, cd] corresponds to the linear objective c0 + c1x1 + … + cdxd. >$objective=new LinearProgram<Rational>(LINEAR_OBJECTIVE=>[0,1,1,1]);

Then we define a new polytope, which is a copy of our old one ($inter_hull) with the LP as an additional property. >$ilp=new Polytope<Rational>(VERTICES=>$integer_hull->VERTICES, LP=>$objective);

And now we can perform some computations:

> print $ilp->LP->MAXIMAL_VALUE; 3 > print$ilp->LP->MAXIMAL_FACE;
{11}

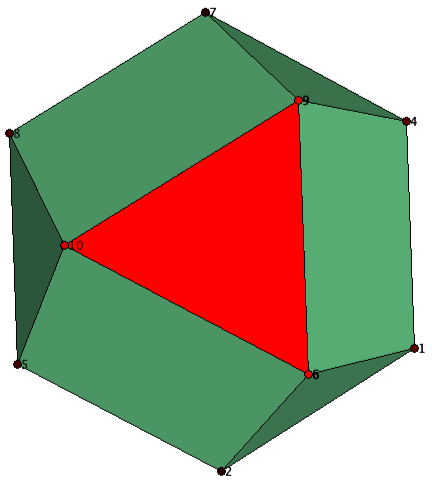

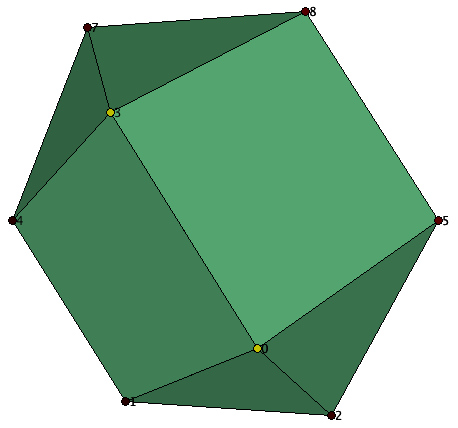

> $ilp->VISUAL->MIN_MAX_FACE; ilp Transparency depthWrite Rotation x-axis y-axis z-axis Rotation speed Display Objects Camera SVG Download New tab  Hence the LP attains its maximal value 2 on the 2-face spanned by the vertices 6, 9 and 10. polymake can visualise the polytope and highlight both its maximal and minimal face in a different (by default admittedly almost painful ) colour. Here you see the maximal face {6 9 10} in red and the minimal face {0 3} (on the opposite side of the polytope) in yellow. Note though that since we started out with a random polytope these results may vary if we perform the same computations another time on a different random polytope. > print$ilp->VERTICES;
1 -1 -1 -1
1 -1 -1 0
1 -1 0 1
1 -1 1 0
1 -1 1 1
1 0 -1 0
1 0 -1 1
1 0 1 -1
1 1 0 0
1 1 0 1
1 1 1 -1
1 1 1 1

Finally, we can have polymake compute and print a Hilbert basis for the cone spanned by $ilp. Notice that this requires normaliz or 4ti2 to be installed in order to work. > print$ilp->HILBERT_BASIS;
1 -1 -1 -1
1 -1 -1 0
1 -1 0 0
1 -1 0 1
1 -1 1 0
1 -1 1 1
1 0 -1 0
1 0 -1 1
1 0 0 -1
1 0 0 0
1 0 0 1
1 0 1 -1
1 0 1 0
1 0 1 1
1 1 0 0
1 1 0 1
1 1 1 -1
1 1 1 0
1 1 1 1
